2010 Honda Rubicon 520 Spiral Series Crush Lock Wheels
2010 Honda Rubicon 520 Spiral Series Crush Lock Wheels
Couldn't load pickup availability
Fits the 2010 Honda Rubicon 520 (520cc) — Honda lug pattern 4/110. 3-piece crushlock wheels in 14" and 16", Spiked, Flat, or Bubble outer ring options.

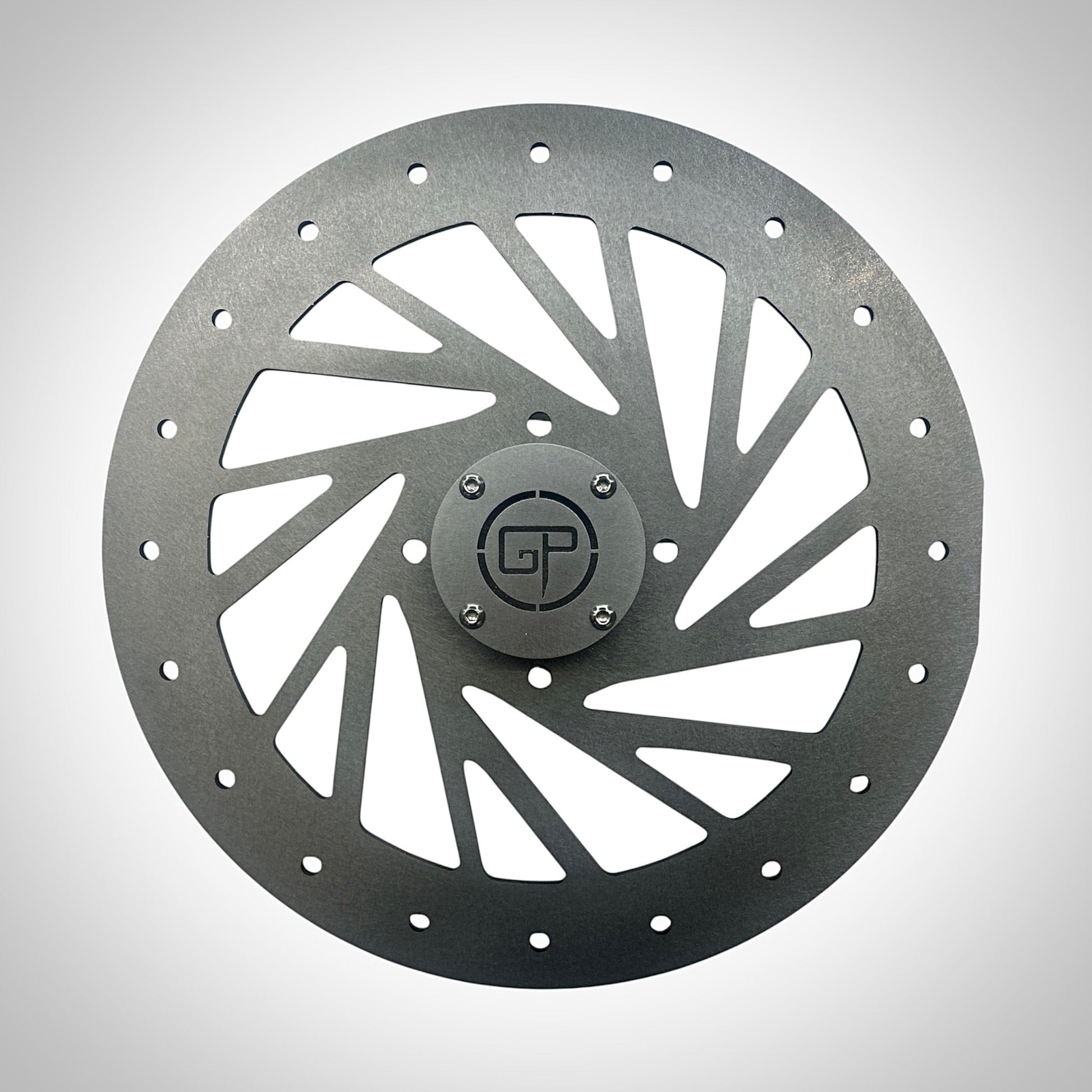

The Rubicon 520 is engineered for serious terrain and these crushlock wheels are engineered to match. The 2010 model is part of the earlier generation Rubicon 520 known for its proven reliability. The Spiral Series features twisted spoke geometry for a uniquely aggressive look that stands out on the trail. These 22 Off Road Spiral Series crushlock wheels fit the Honda 4/110 bolt pattern on the 2010 Rubicon 520 with no modification required.
Each set includes 8 outer rings, 4 centers, 1 center cap, and all hardware to bolt them together, plus a starter kit to crush the tire bead. Available in 14" and 16" with Spiked, Flat, or Bubble outer ring styles. One week lead time. Bare metal — prime and paint or leave raw.

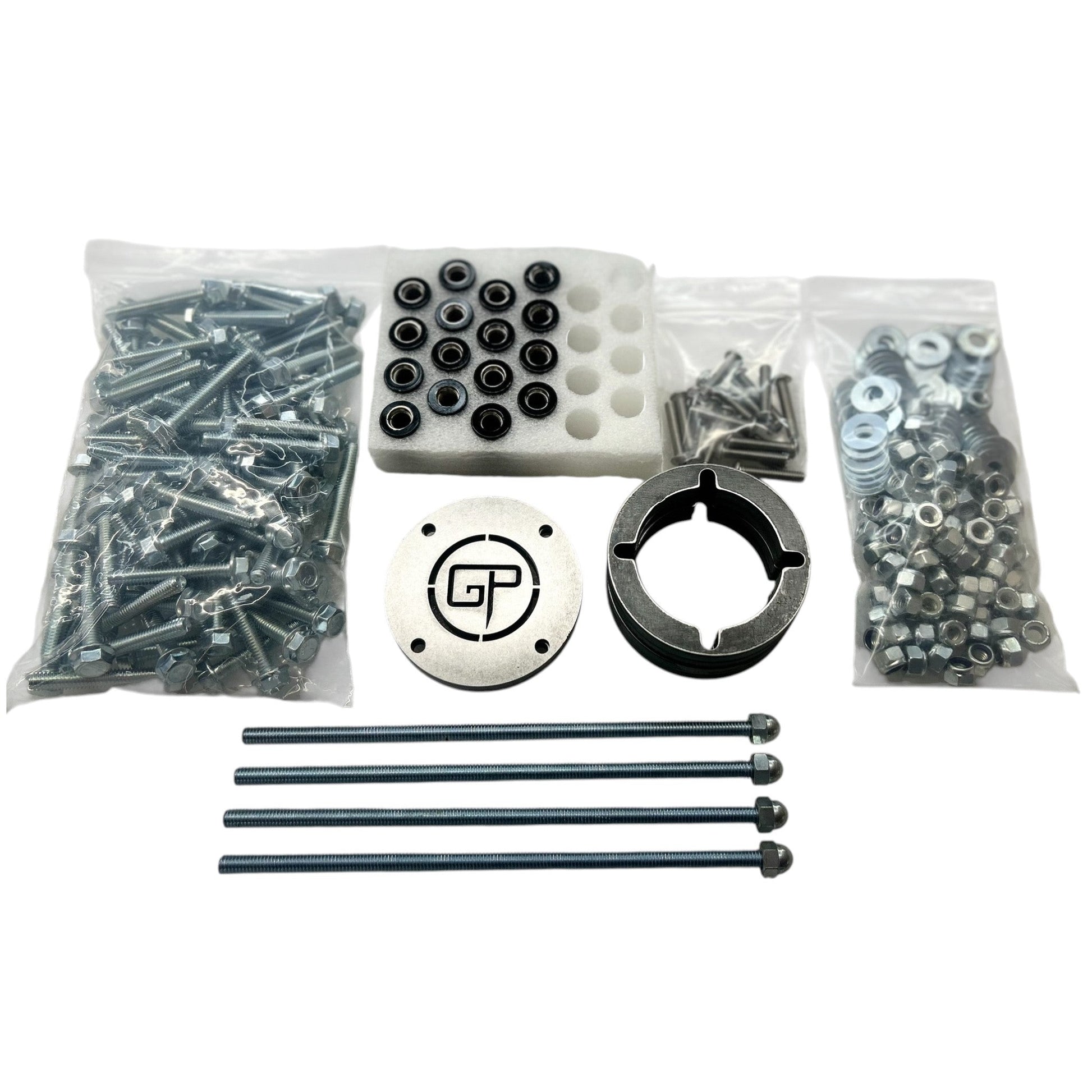

Kit Includes
- 8x outer rings
- 4x centers
- 1x center cap
- Full bolt-together hardware
- Tire bead crush starter kit
Fitment
- 2010 Honda Rubicon 520 (520cc) — Honda lug pattern 4/110
Options

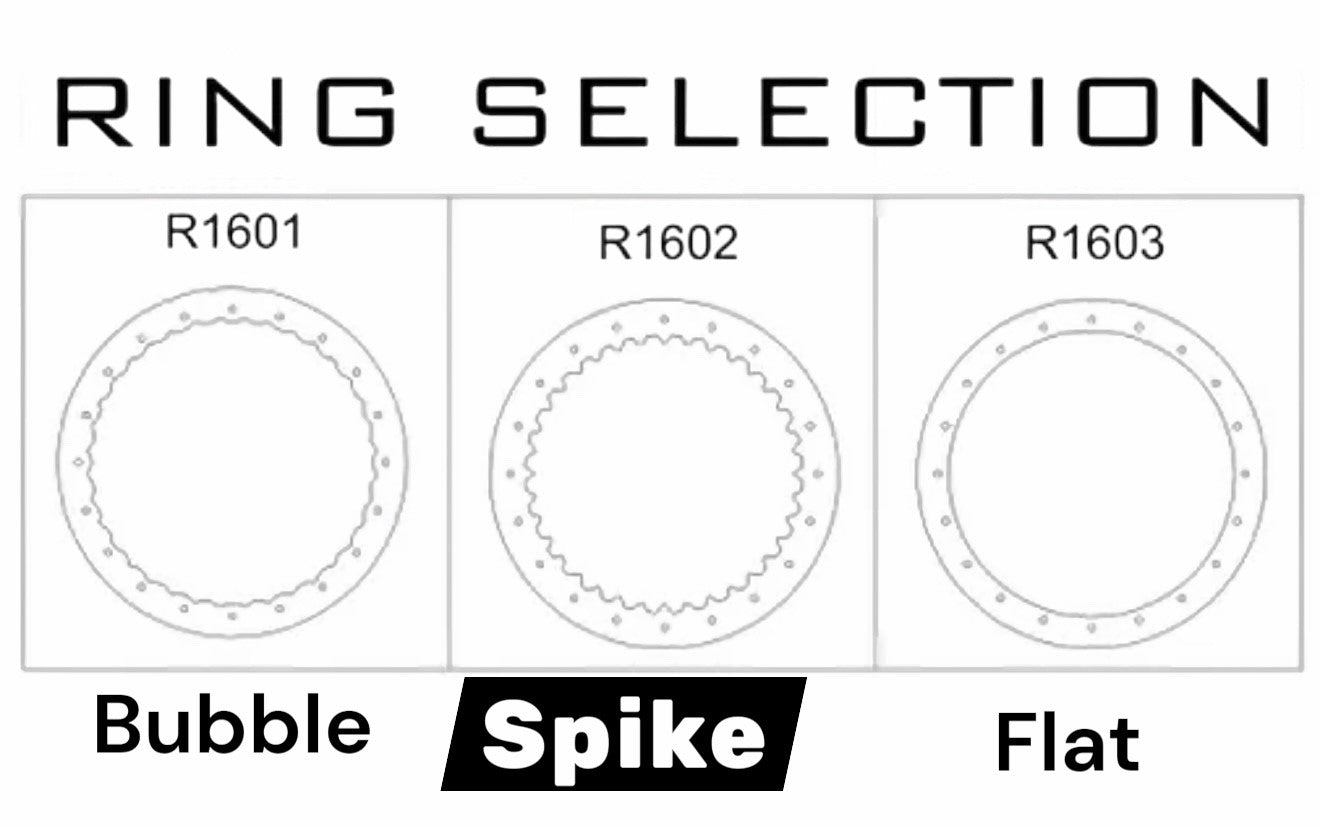

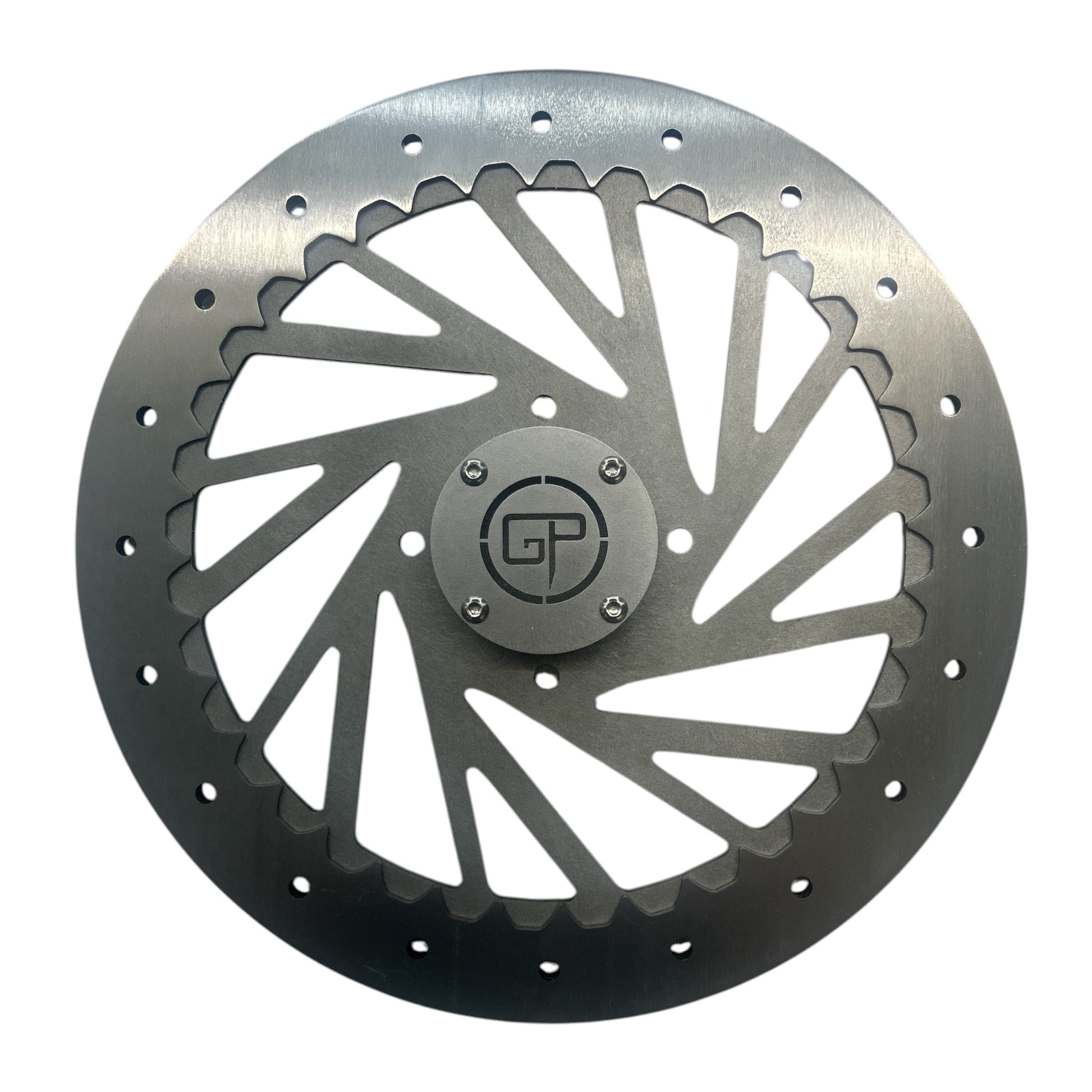

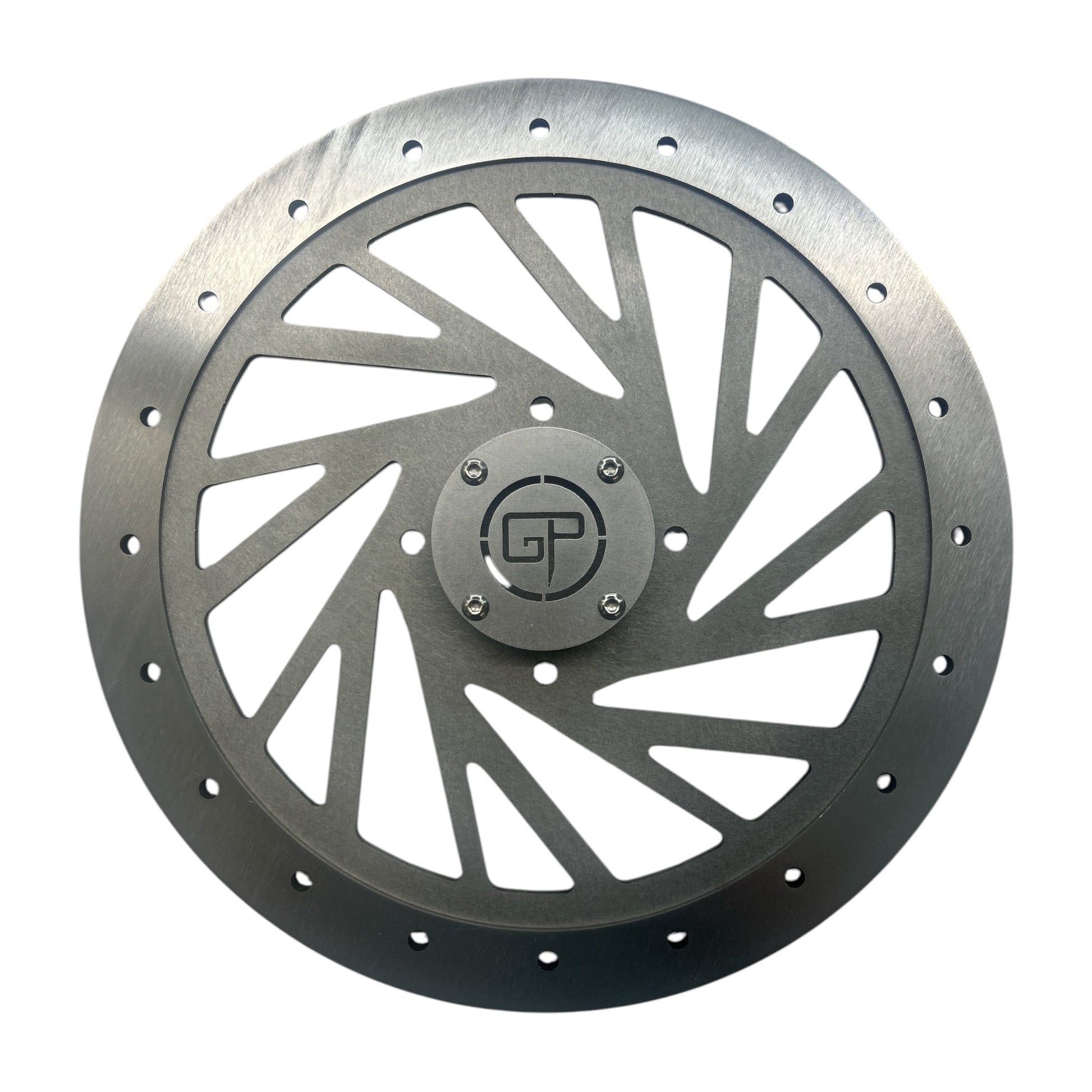

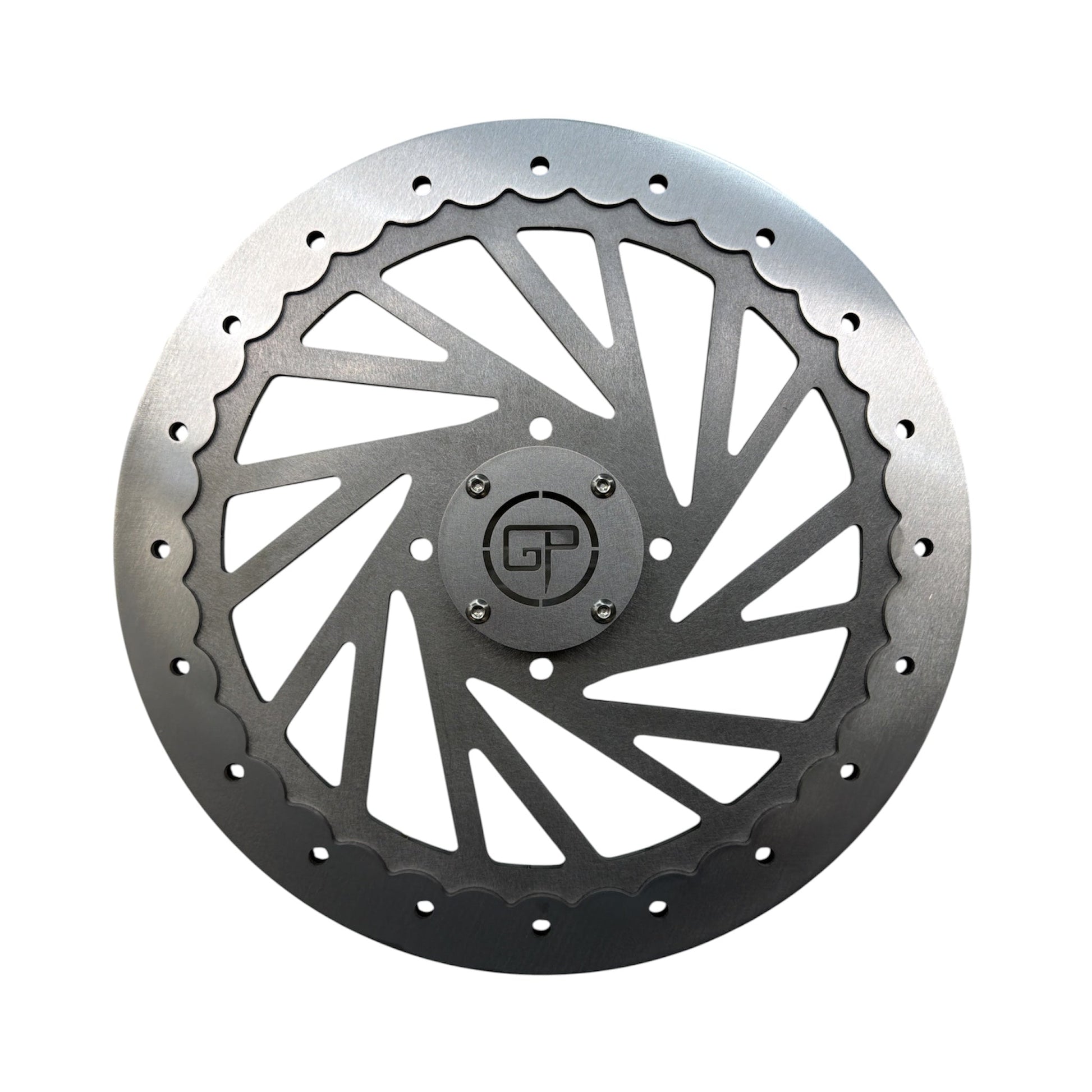

- Ring style: Spiked | Flat | Bubble
- Size: 14" | 16"
- Lug pattern: Honda 4/110
