2016 Honda Rubicon 520 Wedge Series Crush Lock Wheels
2016 Honda Rubicon 520 Wedge Series Crush Lock Wheels
Couldn't load pickup availability
Fits the 2016 Honda Rubicon 520 (520cc) — Honda lug pattern 4/110. 3-piece crushlock wheels in 14" and 16", Spiked, Flat, or Bubble outer ring options.

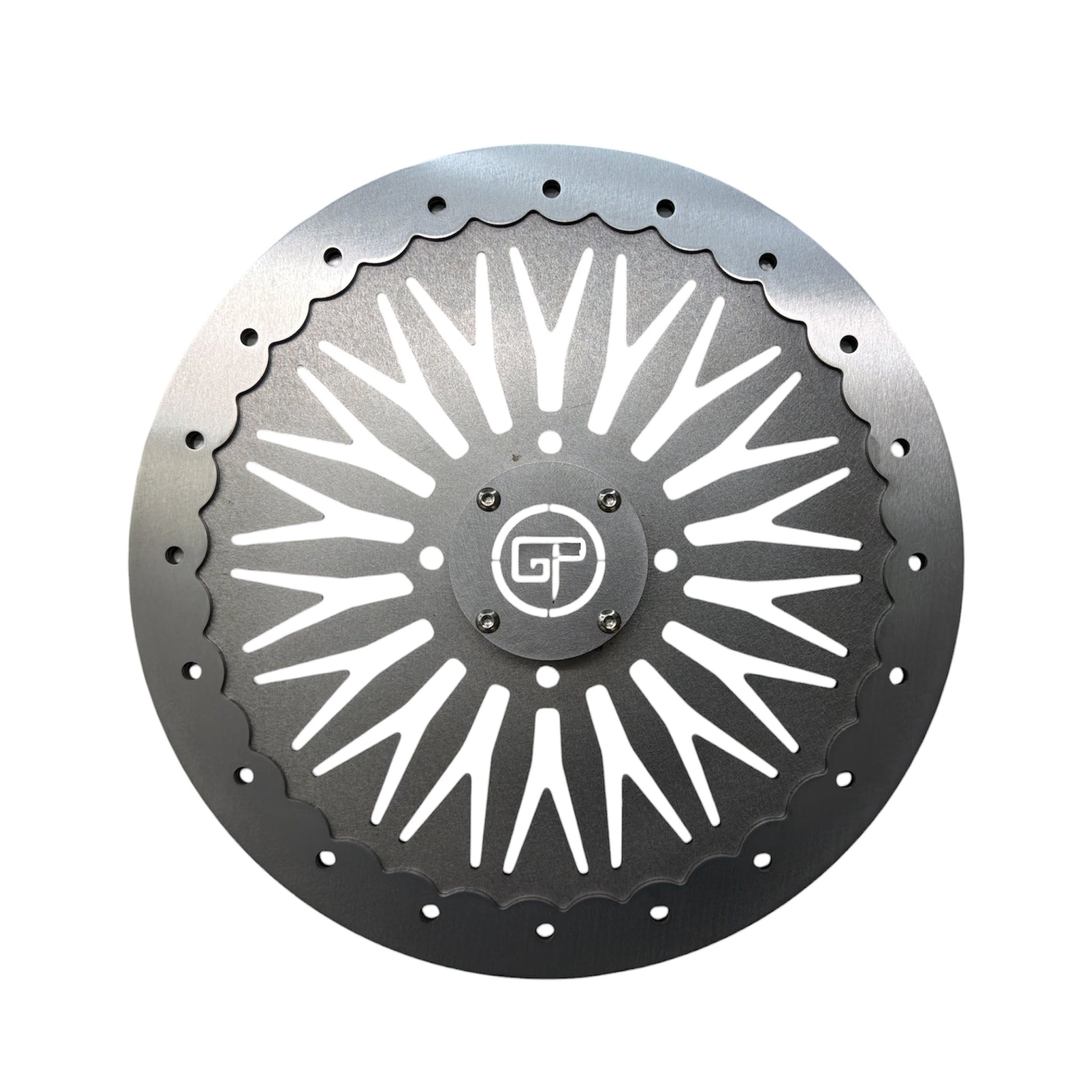

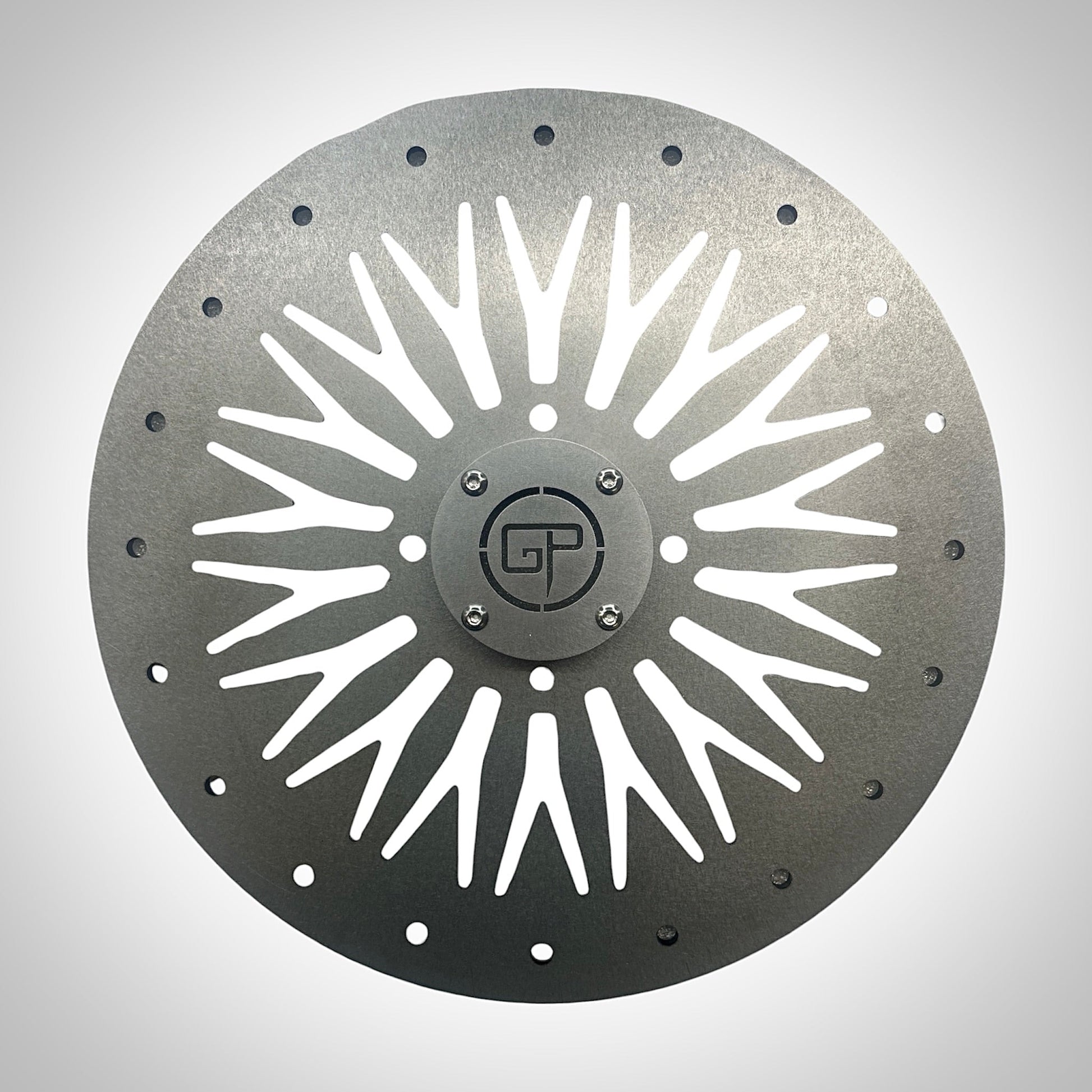

If you're building out a Rubicon 520, crushlock wheels are the upgrade that ties everything together. The 2016 model is the mid-generation Rubicon 520 with refined fuel injection. The Wedge Series features aggressive angular spoke geometry machined from billet aluminum for a sharp, purposeful look. These 22 Off Road Wedge Series crushlock wheels fit the Honda 4/110 bolt pattern on the 2016 Rubicon 520 with no modification required.

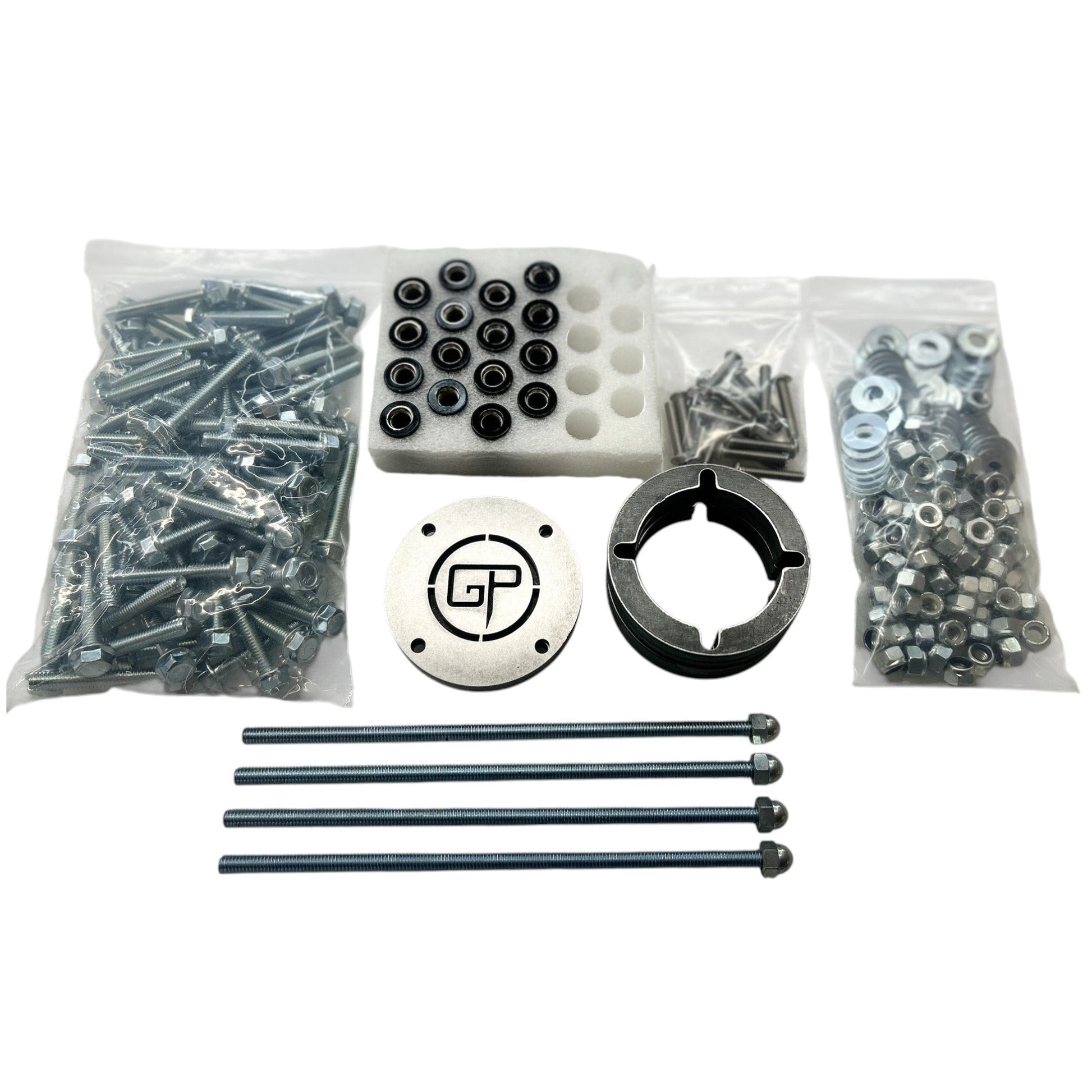

Each set includes 8 outer rings, 4 centers, 1 center cap, and all hardware to bolt them together, plus a starter kit to crush the tire bead. Available in 14" and 16" with Spiked, Flat, or Bubble outer ring styles. Ships within one week. Bare metal, ready for your custom finish.
Kit Includes
- 8x outer rings
- 4x centers
- 1x center cap
- Full bolt-together hardware
- Tire bead crush starter kit
Fitment
- 2016 Honda Rubicon 520 (520cc) — Honda lug pattern 4/110
Options

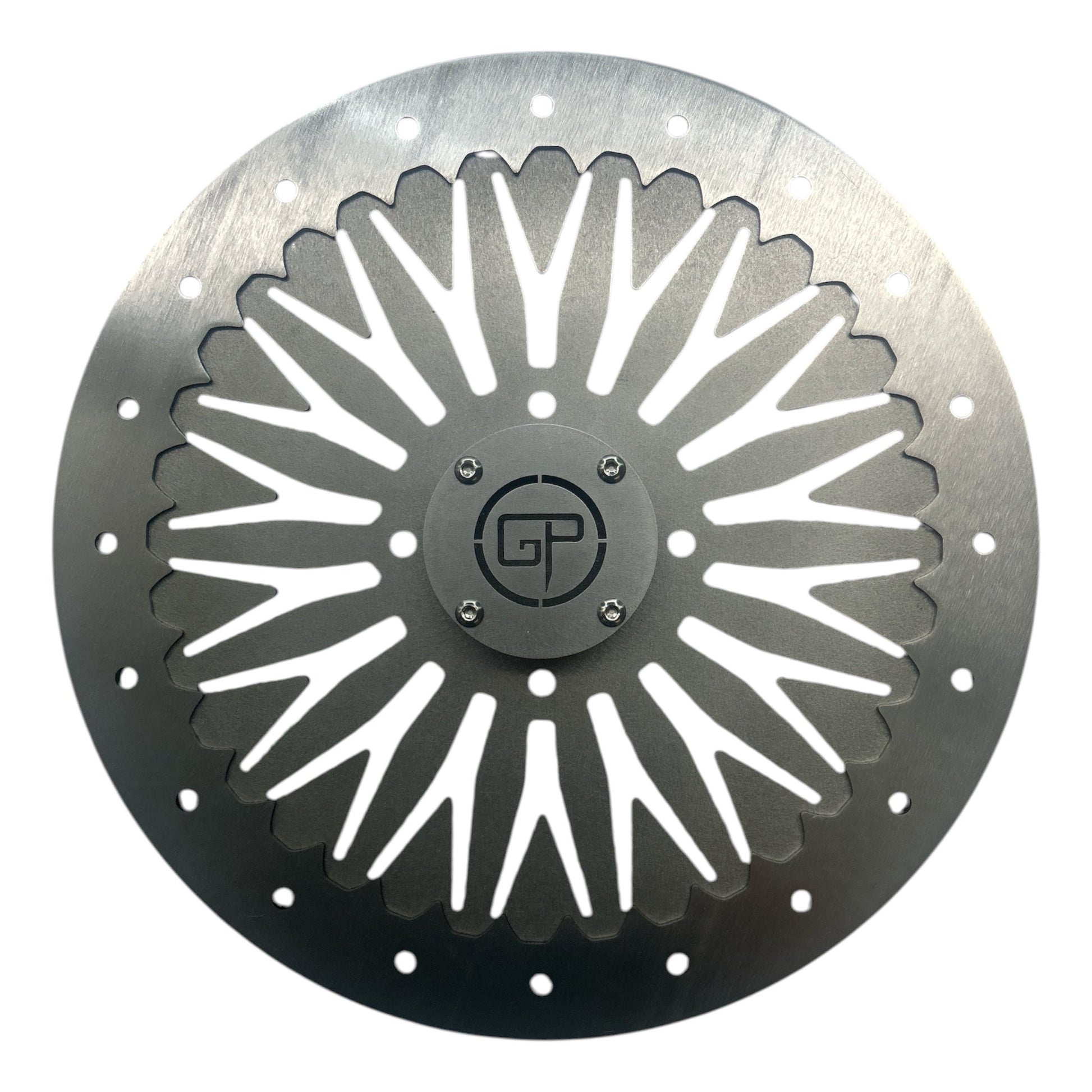

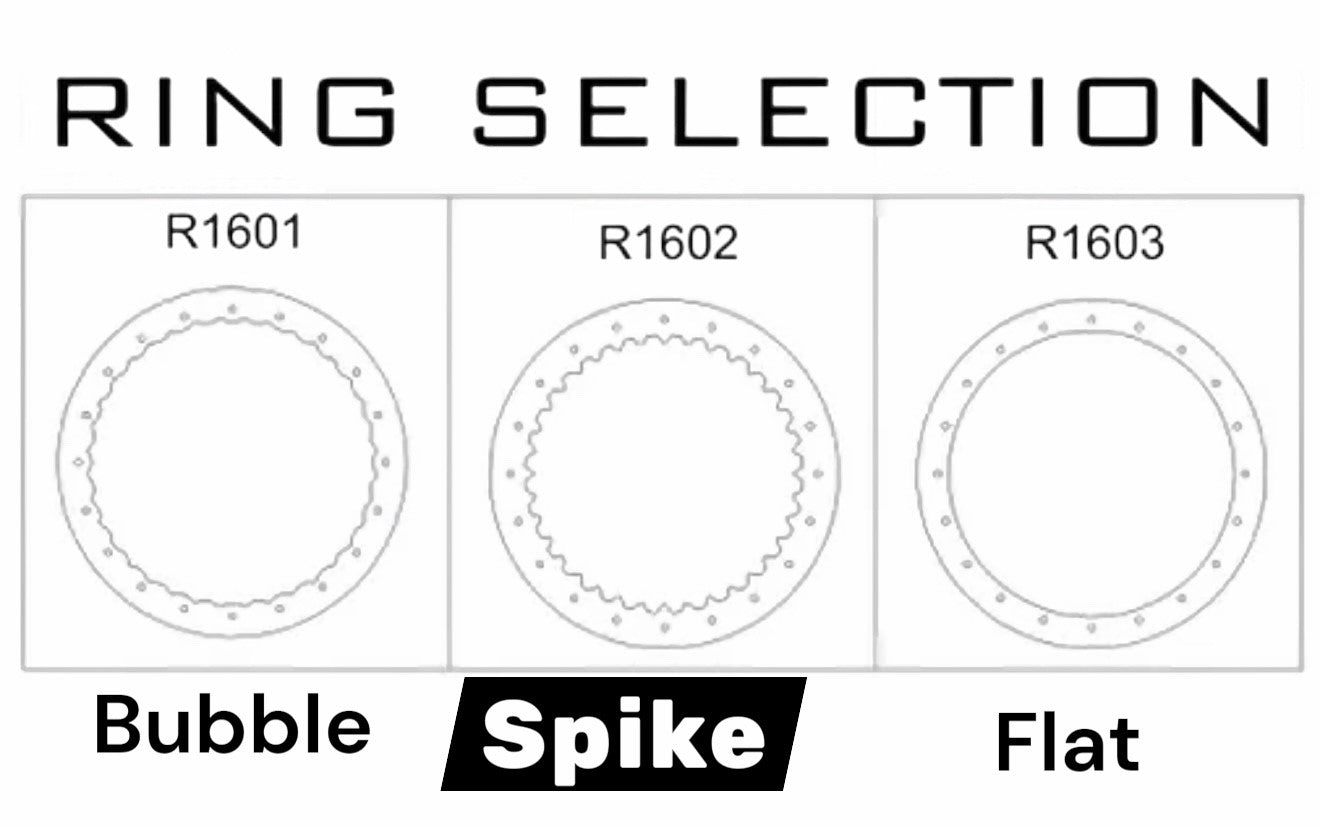

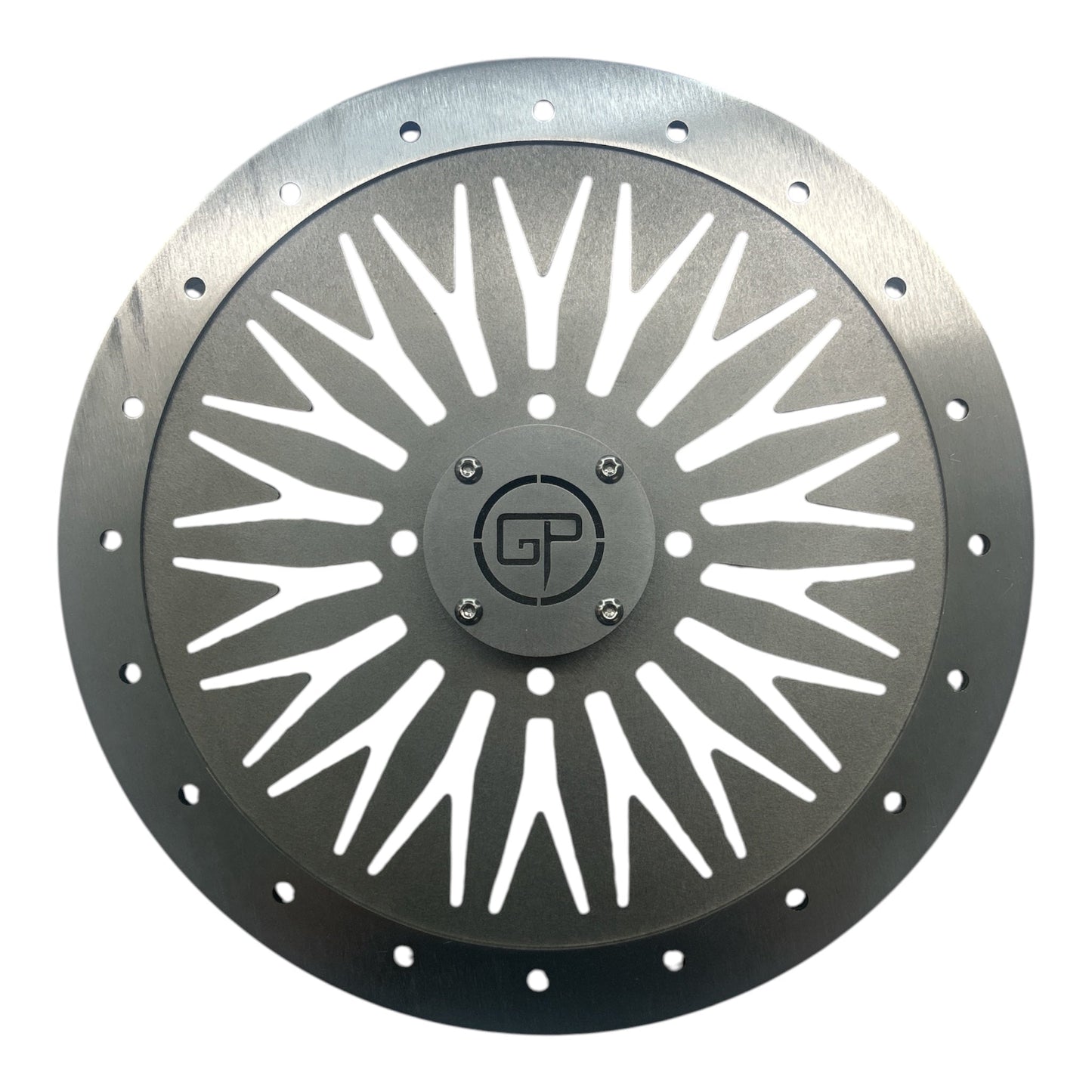

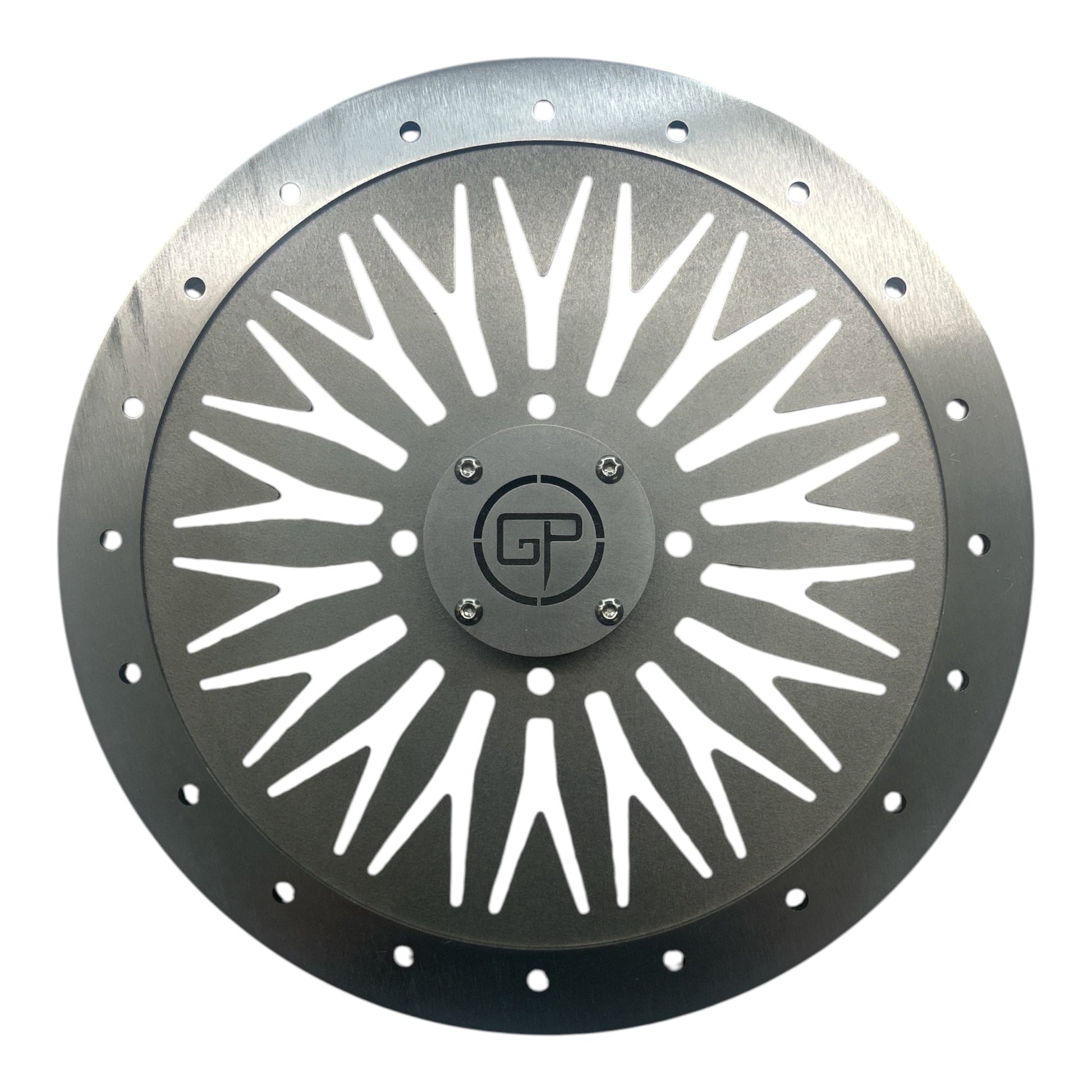

- Ring style: Spiked | Flat | Bubble
- Size: 14" | 16"
- Lug pattern: Honda 4/110
